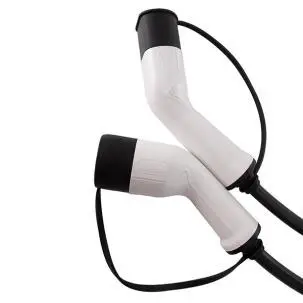

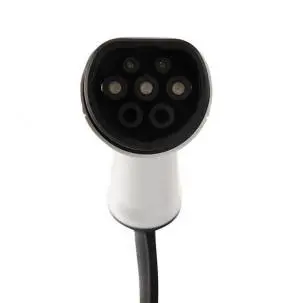

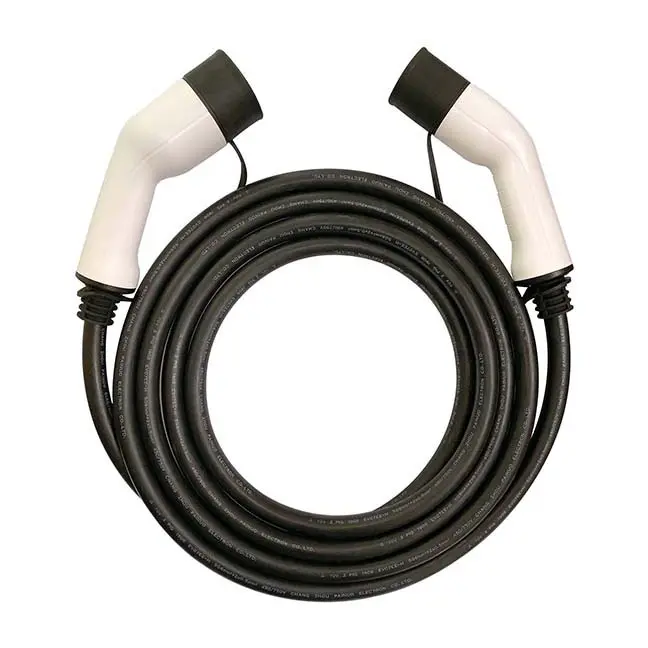

EV type 2 to type 2 charging cable
Model name: NA
This EV type 2 to type 2 charging cable is conform to the provisions and requirements of 62196-2 IEC. Reliable materials, flame retardant, pressure resistance, abrasion resistance, impact resistance and oil resistance make it durable. The customized solution makes it look better.
Apply for Audi A3 e-Tron,for BMW i3,for BMW i8, for Chevrolet Spark, Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes SLS EV,for Mercedes Vito E-Cell Van etc.
Product Specifications
Product Introduction
Mechanical properties
- Cord length: 3m, 5m or customized.
- Meet IEC 62196-2 (Mennekes, Type 2) EU European standard.
- Nice shape and easy to use, protection class IP66(in mated conditions).
- Type 2 to type 2 charging cable.
Materials
- Shell Material: Thermal Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
Tech Specs
| Plug for EVSE | IEC 62196 Type2 male |
| Input power | 1-phase, 220-250V/AC, 16A |
| Application standard | IEC 62196 Type2 |
| Plug shell material | Thermoplastic (flame retardant grade: UL94-0) |
| Operational temperature | -30 °C to +50 °C |
| Vandalism-proof | No |
| UV resistant | Yes |
| Certificate | CE, TUV |
| Cable length | 5m or customized |
| Terminal material | Copper alloy, silver plating |
| Terminal temperature rise | ＜50k |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.5mΩ |
| Mechanical life | ＞10000 times of off-load plug in/out |
| Coupled insertion force | Between 45N and 100N |
| Withstandable impact | Dropping from a 1m height and running-over by a 2-ton vehicle |
| Warranty | 2 years |
