EV type 1 charging plug
Model name: NA

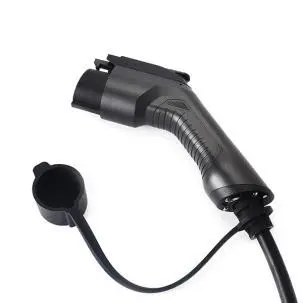

This EV charger type 1 plug is in compliance with US standard. It’s a replaceable accessory for charger plug. With the standard of type 1 SAE J1772. There’s optional current of 16A and 32A for the type 1 charging plug. 4 point fixing and Hinged Lid to protect it. This EV type 1 charging plug also approved by CE. This item is a spare part for the EV charger, once the plug of the charger was broken, you can replace it timely.
Product Specifications
Mechanical properties
1. Mechanical life: no-load plug in/pull out >10000 time;
2. Insertion and Extration Force: 45N<F<80N;
Materials
Shell Material: Thermal Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Type 1 charger plug
Tech Specs
| Item | Type 1 car socket |
| Standard | SAE J1772 |
| Rated Current | 32A |
| Operation Voltage | 120V-250V AC |
| Insulation Resistance | >1000MΩ |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | ＜50K |
| Plug the power | ≤80N |
| Vibration resistance | Meet JDQ 53.3 requirements |
| Working temperature | -30°C ~+ 50°C |
| Mechanical Life | > 10000 times |
| Flame Retardant Grade | UL94 V-0 |
| Certification | CE TUV Approved |

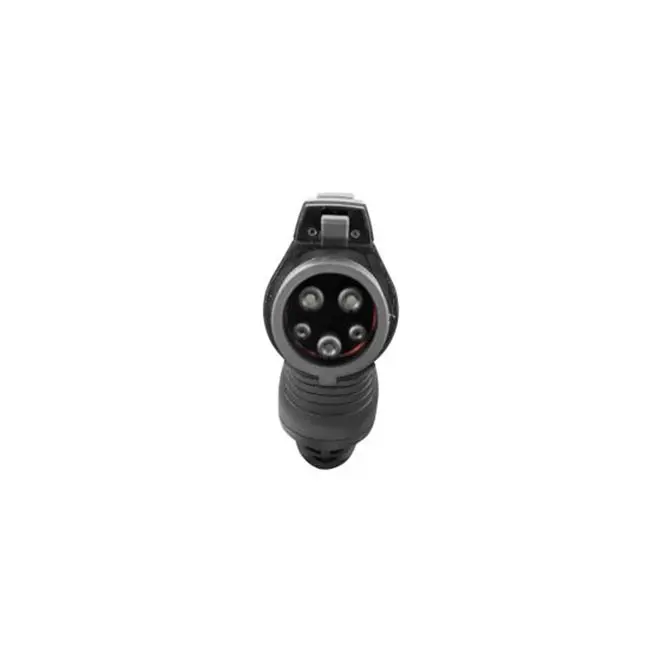

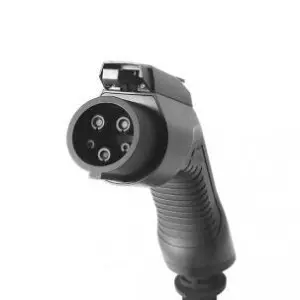

Insert arrangements and functional definition
| Mark | Functional Definition |
| L1 | AC power |
| N | Neutral |
| PE | PE |
| CP | Control Confirmation |
| PP | Connection Confirmation |
