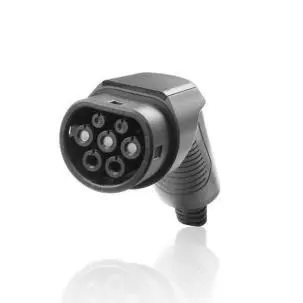

EV type 2 connector charging plug
Model name: NA

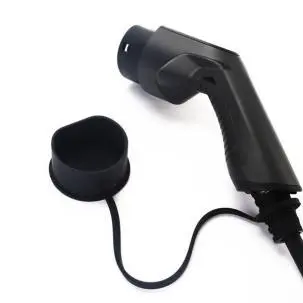

This EV type 2 connector charging plug is in compliance with EU standard. It’s a replaceable accessory EV charger female plug. There’s a dust-proof and waterproof cap to prevent dust entering; with unique copper alloy, the fast charging available. Europe standard type2 (IEC 62196-2) terminal. Thermoplastic cap and cool black surface make it both durable and nice outlook. Anti-slip grooves make it easy to handle.
Product Specifications
IEC 62196-2 Female Plug (Charging Station End) 16A for Electric Vehicle Charging
Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
Nice shape and easy to use, protection class IP66(in mated conditions)
Materials
Shell Material: Thermal Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Tech Specs
| Item | Type 2 connector charging plug |
| Standard | IEC 62196-2 |
| Rated Operating Current | 16A |
| Operation Voltage | AC 250V |
| Insulation Resistance | ＞1000M Ω |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | ＜50K |
| Vibration resistance | Meet JDQ 53.3 requirements |
| Working temperature | -30°C ~+ 50°C |
| Mechanical Life | > 5000 times |
| Flame Retardant Grade | UL94 V-0 |
| Certification | CE TUV Approved |
Insert arrangements and functional definition
| Mark | Functional definition |
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3- (L3) | AC power |
| 4-(N) | Neutral |
| 5-(PE) | PE |
| 6-(CP) | Control confirmation |
| 7-(PP) | Connection confirmation |
