Wallbox Home Use 7kw EV Charger
Model name: model1
Power Option: 7kw, 11kw, 22kw
Full Protection
Dynamic Load Balancing (optional)
OCPP 1.6J (optional)
Customize All Types of Connectors
Smart Home APP by Tuya
WIFI + Bluetooth/ Ethernet /4G (Optional)
1 Years Warranty
Product Specifications
| product name | AC charging pile (supported by car companies) | |
| model | AF-AC-7KW | |
| Dimensions (mm) | 480*350*210mm | |
| AC power | 220Vac±20% ; 50Hz±10% ; L+N+PE | |
| Rated current | 32A | |
| Output Power | 7kW | |
| working environment | Altitude: ≤2000m; Temperature: -20℃~+50℃; | |

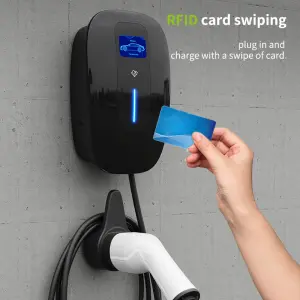

| charging method | Swipe card, scan code | |
| Networking | 2G, 4G, Wifi | |
| Operation mode | Offline no billing, offline billing, online billing | |
| Protective function | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc. | |
| Start Mode | Plug&Play / RFID Card / APP | |
| Home load balancing | Option | |
| Protection class | ≥IP65 | |
| Installation method | Wall-mounted installation requires corresponding accessories | |
